Solid Rubber Forklift Tires | GLOBESTAR WT | GRI Tires
GRI Logo GRI Logo

TIRE FINDER

PICK YOUR DESIRED PARAMETERS AND CLICK SEARCH!

GLOBESTAR WT

Material Handling Tire > EXCAVATORS > SOLID >

Cornering Stability

Tire width

Durability

Driving Comfort

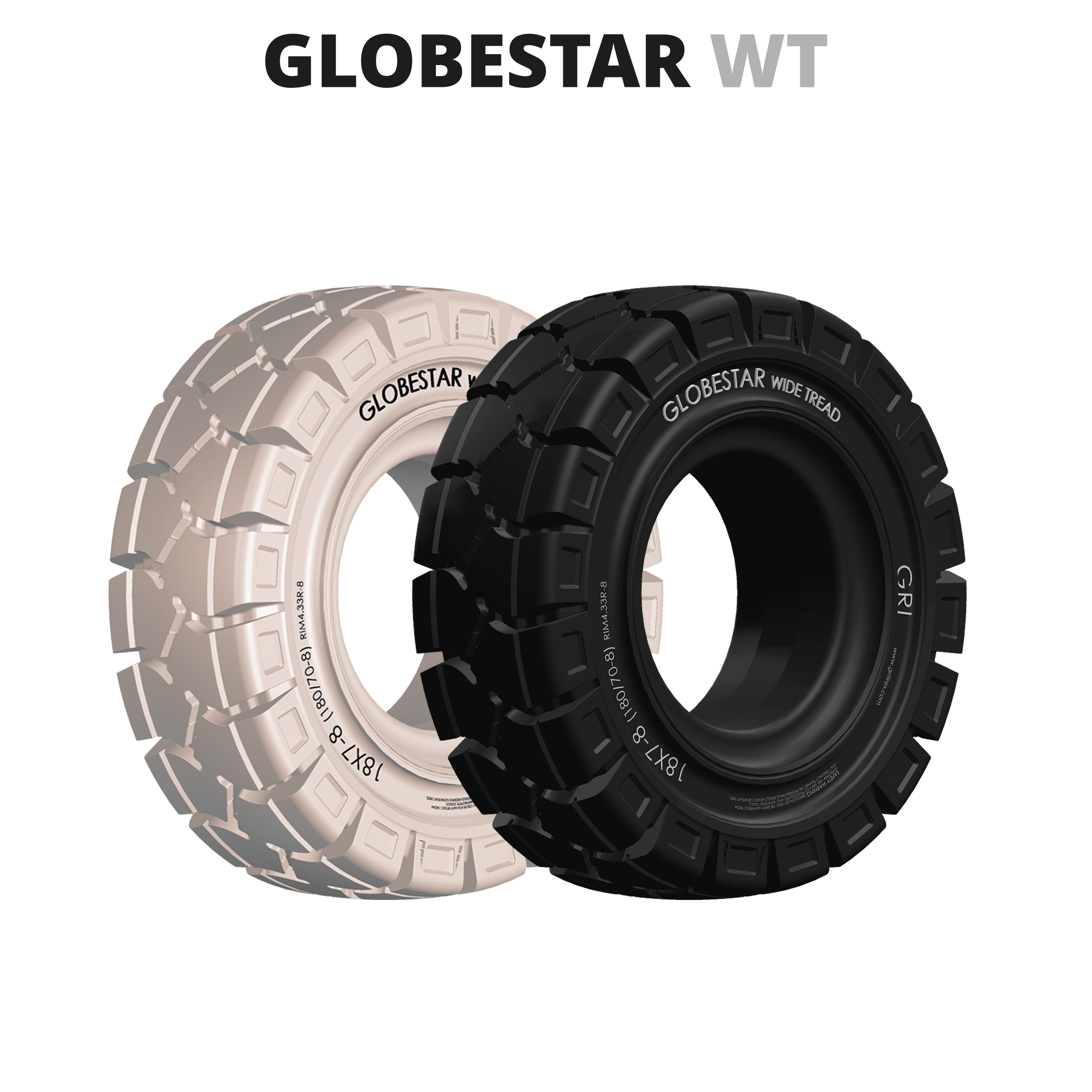

GLOBESTAR WT -Universal Material Handling Tire

GLOBESTAR Wide-Tread is a universal solid tire, built with a natural rubber compound that consistently delivers assured performance. It is one of the widest tires in the industry. The wide-tread and flat crown radius is designed for maximum tire life. The deep lugs of GLOBESTAR WT serve to give the best traction with high stability in normal working environments. The wide-tread also prevents tire distortion while cornering.

- ENERGY SAVING

Very good energy saving due to low rolling resistance

- OPERATING TIME

Very good operating time due to low heat build-up and low cost per hour

- LIFETIME

Ideal tire life and reduced maintenance cost

-CORNERING STABILITY

The wide tread provides very good cornering stability and driver comfort.


Download Technical Data Sheet

International Standards
Clip On
Max width ±1% (mm)
OD ± 2% (mm)
Other Vehicles load capacity (Kg) 6 Km/h
Other Vehicles load capacity (Kg) 10 Km/h
Load Wheel Capacity 25 Km/h (Kg)
Steer wheel Capacity 25 Km/h (Kg)

  • 4.00-4

    Clip On
    Max width ±1% (mm) 97
    OD ± 2% (mm) 304
    Other Vehicles load capacity (Kg) 6 Km/h 535
    Other Vehicles load capacity (Kg) 10 Km/h 485
    Load Wheel Capacity 25 Km/h (Kg) 535
    Steer wheel Capacity 25 Km/h (Kg) 412

  • 4.00-4

    Clip On
    Max width ±1% (mm) 97
    OD ± 2% (mm) 304
    Other Vehicles load capacity (Kg) 6 Km/h 535
    Other Vehicles load capacity (Kg) 10 Km/h 485
    Load Wheel Capacity 25 Km/h (Kg) 535
    Steer wheel Capacity 25 Km/h (Kg) 412

  • 15x4 1/2-8

    Clip On ●
    Max width ±1% (mm) 115
    OD ± 2% (mm) 374
    Other Vehicles load capacity (Kg) 6 Km/h 1040
    Other Vehicles load capacity (Kg) 10 Km/h 945
    Load Wheel Capacity 25 Km/h (Kg) 1040
    Steer wheel Capacity 25 Km/h (Kg) 800

  • 4.00-8

    Clip On ●
    Max width ±1% (mm) 104
    OD ± 2% (mm) 403
    Other Vehicles load capacity (Kg) 6 Km/h 950
    Other Vehicles load capacity (Kg) 10 Km/h 860
    Load Wheel Capacity 25 Km/h (Kg) 950
    Steer wheel Capacity 25 Km/h (Kg) 730

  • 5.00-8

    Clip On ●
    Max width ±1% (mm) 115
    OD ± 2% (mm) 444
    Other Vehicles load capacity (Kg) 6 Km/h 1415
    Other Vehicles load capacity (Kg) 10 Km/h 1285
    Load Wheel Capacity 25 Km/h (Kg) 1415
    Steer wheel Capacity 25 Km/h (Kg) 1090

  • 140/55-9

    Clip On ●
    Max width ±1% (mm) 129
    OD ± 2% (mm) 377
    Other Vehicles load capacity (Kg) 6 Km/h 1170
    Other Vehicles load capacity (Kg) 10 Km/h 1060
    Load Wheel Capacity 25 Km/h (Kg) 1170
    Steer wheel Capacity 25 Km/h (Kg) 900

  • 6.00-9

    Clip On ●
    Max width ±1% (mm) 139
    OD ± 2% (mm) 517
    Other Vehicles load capacity (Kg) 6 Km/h 1885
    Other Vehicles load capacity (Kg) 10 Km/h 1710
    Load Wheel Capacity 25 Km/h (Kg) 1885
    Steer wheel Capacity 25 Km/h (Kg) 1450

  • 16x6-8

    Clip On ●
    Max width ±1% (mm) 138
    OD ± 2% (mm) 406
    Other Vehicles load capacity (Kg) 6 Km/h 1455
    Other Vehicles load capacity (Kg) 10 Km/h 1360
    Load Wheel Capacity 25 Km/h (Kg) 1455
    Steer wheel Capacity 25 Km/h (Kg) 1150

  • 18x7-8

    Clip On ●
    Max width ±1% (mm) 152
    OD ± 2% (mm) 451
    Other Vehicles load capacity (Kg) 6 Km/h 2145
    Other Vehicles load capacity (Kg) 10 Km/h 1945
    Load Wheel Capacity 25 Km/h (Kg) 2145
    Steer wheel Capacity 25 Km/h (Kg) 1650

  • 6.50-10

    Clip On ●
    Max width ±1% (mm) 156
    OD ± 2% (mm) 563
    Other Vehicles load capacity (Kg) 6 Km/h 2340
    Other Vehicles load capacity (Kg) 10 Km/h 2125
    Load Wheel Capacity 25 Km/h (Kg) 2340
    Steer wheel Capacity 25 Km/h (Kg) 1800

  • 7.00-12

    Clip On ●
    Max width ±1% (mm) 167
    OD ± 2% (mm) 645
    Other Vehicles load capacity (Kg) 6 Km/h 2920
    Other Vehicles load capacity (Kg) 10 Km/h 2645
    Load Wheel Capacity 25 Km/h (Kg) 2920
    Steer wheel Capacity 25 Km/h (Kg) 2240

  • 7.00-15

    Clip On ●
    Max width ±1% (mm) 174
    OD ± 2% (mm) 704
    Other Vehicles load capacity (Kg) 6 Km/h 3545
    Other Vehicles load capacity (Kg) 10 Km/h 3215
    Load Wheel Capacity 25 Km/h (Kg) 3545
    Steer wheel Capacity 25 Km/h (Kg) 2725

  • 8.25-15

    Clip On ●
    Max width ±1% (mm) 209
    OD ± 2% (mm) 806
    Other Vehicles load capacity (Kg) 6 Km/h 4750
    Other Vehicles load capacity (Kg) 10 Km/h 4300
    Load Wheel Capacity 25 Km/h (Kg) 4750
    Steer wheel Capacity 25 Km/h (Kg) 3650

  • 21x8-9

    Clip On ●
    Max width ±1% (mm) 179
    OD ± 2% (mm) 514
    Other Vehicles load capacity (Kg) 6 Km/h 2755
    Other Vehicles load capacity (Kg) 10 Km/h 2505
    Load Wheel Capacity 25 Km/h (Kg) 2755
    Steer wheel Capacity 25 Km/h (Kg) 2120

  • 7.00-15

    Clip On ●
    Max width ±1% (mm) 174
    OD ± 2% (mm) 704
    Other Vehicles load capacity (Kg) 6 Km/h 3545
    Other Vehicles load capacity (Kg) 10 Km/h 3215
    Load Wheel Capacity 25 Km/h (Kg) 3545
    Steer wheel Capacity 25 Km/h (Kg) 2725

  • 200/50-10

    Clip On ●
    Max width ±1% (mm) 191
    OD ± 2% (mm) 455
    Other Vehicles load capacity (Kg) 6 Km/h 2470
    Other Vehicles load capacity (Kg) 10 Km/h 2240
    Load Wheel Capacity 25 Km/h (Kg) 2470
    Steer wheel Capacity 25 Km/h (Kg) 1900

  • 23x9-10

    Clip On ●
    Max width ±1% (mm) 197
    OD ± 2% (mm) 580
    Other Vehicles load capacity (Kg) 6 Km/h 3445
    Other Vehicles load capacity (Kg) 10 Km/h 3125
    Load Wheel Capacity 25 Km/h (Kg) 3445
    Steer wheel Capacity 25 Km/h (Kg) 2650

  • 8.25-15

    Clip On ●
    Max width ±1% (mm) 209
    OD ± 2% (mm) 806
    Other Vehicles load capacity (Kg) 6 Km/h 4750
    Other Vehicles load capacity (Kg) 10 Km/h 4300
    Load Wheel Capacity 25 Km/h (Kg) 4750
    Steer wheel Capacity 25 Km/h (Kg) 3650

  • 9.00-20

    Clip On
    Max width ±1% (mm) 231
    OD ± 2% (mm) 970
    Other Vehicles load capacity (Kg) 6 Km/h 5340
    Other Vehicles load capacity (Kg) 10 Km/h 5200
    Load Wheel Capacity 25 Km/h (Kg) 5340
    Steer wheel Capacity 25 Km/h (Kg) 4450

  • 250-15

    Clip On ●
    Max width ±1% (mm) 216
    OD ± 2% (mm) 709
    Other Vehicles load capacity (Kg) 6 Km/h 4750
    Other Vehicles load capacity (Kg) 10 Km/h 4310
    Load Wheel Capacity 25 Km/h (Kg) 4750
    Steer wheel Capacity 25 Km/h (Kg) 3650

  • 8.15-15 (28x9-15)

    Clip On ●
    Max width ±1% (mm) 214
    OD ± 2% (mm) 680
    Other Vehicles load capacity (Kg) 6 Km/h 3770
    Other Vehicles load capacity (Kg) 10 Km/h 3420
    Load Wheel Capacity 25 Km/h (Kg) 3770
    Steer wheel Capacity 25 Km/h (Kg) 2900

  • 10.00-20

    Clip On
    Max width ±1% (mm) 248
    OD ± 2% (mm) 1005
    Other Vehicles load capacity (Kg) 6 Km/h 6000
    Other Vehicles load capacity (Kg) 10 Km/h 5450
    Load Wheel Capacity 25 Km/h (Kg) 6000
    Steer wheel Capacity 25 Km/h (Kg) 5000

  • 9.00-20

    Clip On
    Max width ±1% (mm) 231
    OD ± 2% (mm) 970
    Other Vehicles load capacity (Kg) 6 Km/h 5340
    Other Vehicles load capacity (Kg) 10 Km/h 5200
    Load Wheel Capacity 25 Km/h (Kg) 5340
    Steer wheel Capacity 25 Km/h (Kg) 4450

  • 250-15

    Clip On ●
    Max width ±1% (mm) 216
    OD ± 2% (mm) 709
    Other Vehicles load capacity (Kg) 6 Km/h 4750
    Other Vehicles load capacity (Kg) 10 Km/h 4310
    Load Wheel Capacity 25 Km/h (Kg) 4750
    Steer wheel Capacity 25 Km/h (Kg) 3650

  • 10.00-20

    Clip On
    Max width ±1% (mm) 248
    OD ± 2% (mm) 1005
    Other Vehicles load capacity (Kg) 6 Km/h 6000
    Other Vehicles load capacity (Kg) 10 Km/h 5450
    Load Wheel Capacity 25 Km/h (Kg) 6000
    Steer wheel Capacity 25 Km/h (Kg) 5000

  • 10.00-20

    Clip On ●
    Max width ±1% (mm) 248
    OD ± 2% (mm) 1005
    Other Vehicles load capacity (Kg) 6 Km/h 6000
    Other Vehicles load capacity (Kg) 10 Km/h 5450
    Load Wheel Capacity 25 Km/h (Kg) 6000
    Steer wheel Capacity 25 Km/h (Kg) 5000

  • 12.00-20

    Clip On
    Max width ±1% (mm) 284
    OD ± 2% (mm) 1084
    Other Vehicles load capacity (Kg) 6 Km/h 7500
    Other Vehicles load capacity (Kg) 10 Km/h 6810
    Load Wheel Capacity 25 Km/h (Kg) 7500
    Steer wheel Capacity 25 Km/h (Kg) 6250

  • 23x10-12

    Clip On ●
    Max width ±1% (mm) 232
    OD ± 2% (mm) 580
    Other Vehicles load capacity (Kg) 6 Km/h 3770
    Other Vehicles load capacity (Kg) 10 Km/h 3420
    Load Wheel Capacity 25 Km/h (Kg) 3770
    Steer wheel Capacity 25 Km/h (Kg) 2900

  • 27x10-12

    Clip On ●
    Max width ±1% (mm) 243
    OD ± 2% (mm) 670
    Other Vehicles load capacity (Kg) 6 Km/h 3900
    Other Vehicles load capacity (Kg) 10 Km/h 3540
    Load Wheel Capacity 25 Km/h (Kg) 3900
    Steer wheel Capacity 25 Km/h (Kg) 3000

  • 300-15

    Clip On ●
    Max width ±1% (mm) 262
    OD ± 2% (mm) 811
    Other Vehicles load capacity (Kg) 6 Km/h 5850
    Other Vehicles load capacity (Kg) 10 Km/h 5310
    Load Wheel Capacity 25 Km/h (Kg) 5850
    Steer wheel Capacity 25 Km/h (Kg) 4500

  • 10.00-20

    Clip On
    Max width ±1% (mm) 248
    OD ± 2% (mm) 1005
    Other Vehicles load capacity (Kg) 6 Km/h 6000
    Other Vehicles load capacity (Kg) 10 Km/h 5450
    Load Wheel Capacity 25 Km/h (Kg) 6000
    Steer wheel Capacity 25 Km/h (Kg) 5000

  • 12.00-20

    Clip On
    Max width ±1% (mm) 284
    OD ± 2% (mm) 1084
    Other Vehicles load capacity (Kg) 6 Km/h 7500
    Other Vehicles load capacity (Kg) 10 Km/h 6810
    Load Wheel Capacity 25 Km/h (Kg) 7500
    Steer wheel Capacity 25 Km/h (Kg) 6250

  • 12.00-20

    Clip On
    Max width ±1% (mm) 284
    OD ± 2% (mm) 1084
    Other Vehicles load capacity (Kg) 6 Km/h 7500
    Other Vehicles load capacity (Kg) 10 Km/h 6810
    Load Wheel Capacity 25 Km/h (Kg) 7500
    Steer wheel Capacity 25 Km/h (Kg) 6250

  • 355/65-15

    Clip On ●
    Max width ±1% (mm) 290
    OD ± 2% (mm) 819
    Other Vehicles load capacity (Kg) 6 Km/h 7800
    Other Vehicles load capacity (Kg) 10 Km/h 6430
    Load Wheel Capacity 25 Km/h (Kg) 7800
    Steer wheel Capacity 25 Km/h (Kg) 6000
